A simple, compact
and efficient system !

A SIMPLE, COMPACT AND EFFICIENT SYSTEM!
  1. Softened water tank to supply the brine tank and production cell.
  2. Brine tank isolated from the salt reserve.
  3. Salt tank: the salt used must comply with one of the 4 standards below : :
    NF EN 973 Quality A
    NF EN 14805 Type 1
    NF EN 16401 Quality A
    NF EN16370.
  4. The brine is mixed with softened water at the inlet to the production circuit.
  5. The resulting mixture is injected into the production cell circuit. Sodium hypochlorite is produced continuously.
  6. The sodium hypochlorite produced is discharged directly into the storage tank. With its pre-mounted suction pipe, the solution is ready to be injected in the hydraulic circuit.
  7. Electronical box controlling the entire system.

A simple, compact

and efficient system !

A SIMPLE, COMPACT AND EFFICIENT SYSTEM!

Softened water tank to supply the brine tank and production cell.

Brine tank isolated from the salt reserve.

Salt tank : the salt used must comply with one of the 4 standards below :

NF EN 973 Quality A
NF EN 14805 Type 1
NF EN 16401 Quality A
NF EN16370.

The brine is mixed with softened water at the inlet to the production circuit.

The resulting mixture is injected into the production cell circuit. Sodium hypochlorite is produced continuously.

The sodium hypochlorite produced is discharged directly into the storage tank. With its pre-mounted suction pipe, the solution is ready to be injected in the hydraulic circuit.

Electronical box controlling the entire system.

Technical specifications

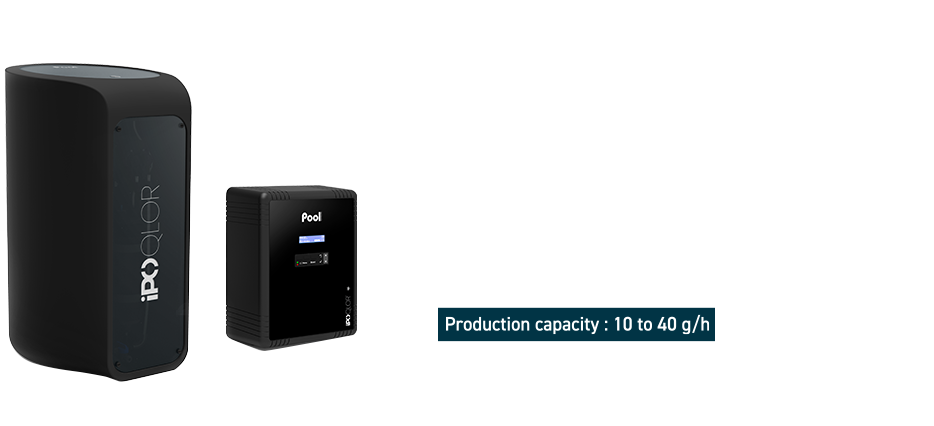

iPOQLOR® Compact range

TECHNICAL SPECIFICATIONS iPOQLOR® Compact RANGE

Technical specifications

iPOQLOR® Compact range

iPOQLOR COMPACT MODEL
REFERENCE

 iPOQLOR COMPACT 10
ELYI23NPSC-G4NM10		 iPOQLOR COMPACT 20
ELYI23NPSC-G4NX20		 iPOQLOR COMPACT 40
ELYI23NPSC-G4NZ40
Maximum production (L/h) 10 10 10
Maximum production of active chlorine (g/h) 10 20 40
Maximum production of active chlorine per day (kg/day) 0.24 0.48 0.96
Concentration of active chlorine in the solution (g/L) 1 2 4
GENERAL CONSUMPTIONS
Water (L/h) 10 10 10
Salt (with softener) (g/h) 31 63 125
CONSUMPTION FOR THE PRODUCTION OF 1KG ACTIVE CHLORINE
Electricity (kW) 3,5 3,5 3,5
Certified biocide salt (kg) 3,1 3,1 3,1
Softened water (L) 1000 500 250
CONDITIONS OF USE
Ambient temperature (°C) < 40 < 40 < 40
Water inlet temperature (°C) < 20 < 20 < 20
Input water hardness (with softener) (°f) < 10 < 10 < 10
Operating pressure (bar)  1 à 3  1 à 3  1 à 3
FEATURES
Dimensions (LxWxH) mm 450 x 490 x 783 450 x 490 x 783 450 x 490 x 783
Overall weight (kg) 18 18 18
Reactor material HDPE HDPE HDPE
Production tank and retention tank material HDPE HDPE HDPE
Production tank volume (L) 100 100 100
ELECTRICAL CHARACTERISTICS
Power supply 230 V – 50/60 Hz 230 V – 50/60 Hz 230 V – 50/60 Hz
Maximum current on each electrode (A) <15 <15 <15
Voltage on each electrode (V) <20 <20 <20
EQUIPMENT / FUNCTIONS
Number of electrodes 1 1 1
Number of plates 4 5 9
Communication BT/Modbus BT/Modbus BT/Modbus
WARRANTIES
Electronical box 2 ans 2 ans 2 ans
Cell* 2 ans 2 ans 2 ans
Reactor 2 ans 2 ans 2 ans
* in the limit of 10 000 hours of operation
OPTION
Softener KIT23ADOU4L KIT23ADOU4L KIT23ADOU4L
